The Hermes

A new standard in fixed-wing drones


The Airframe

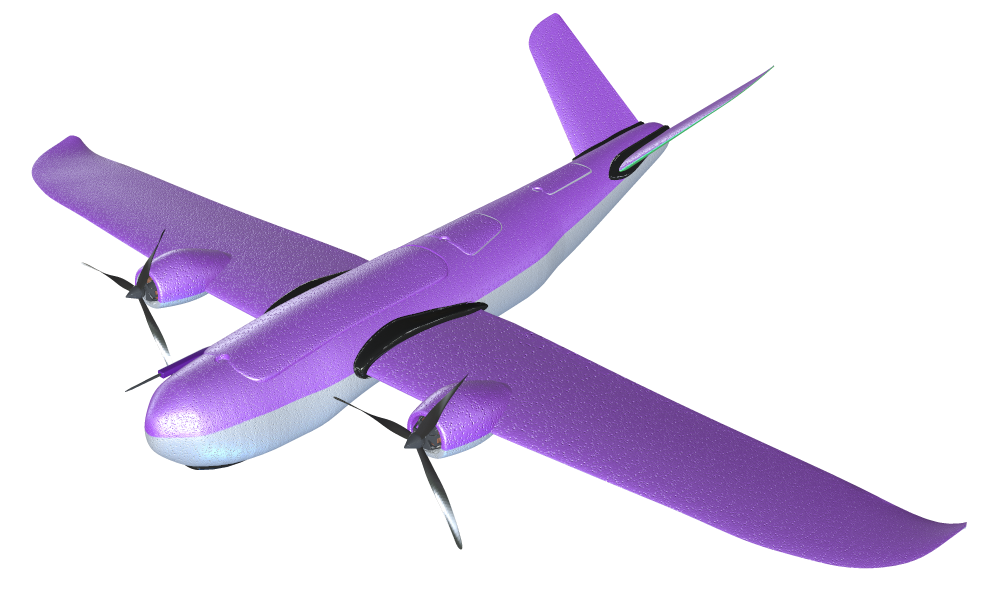

The Hermes is a configurable, 2m (~6.5 ft) fixed-wing drone that is engineered to meet the demands of serious drone pilots. When the job is big and multirotors on the market just won't get it done, turn to the Hermes.

Autonomy

We all know it, fixed-wing drones are more stressful to control than multi-rotor counterparts. The Hermes has state-of-the-art avionics and environment monitoring making it capable of autonomous flights, takeoff to landing. Our drone was designed to be thrown, or launched from a passive launch ramp. Every Hermes comes with a parachute for safe, stress free landings, which combined with the short takeoff capabilities means Hermes does not need a huge clearing to operate, making planning easier.


Endurance & Range

What good is a drone without a useful flight time and range?
Hermes comes standard with a 4-hour flight time at cruise speeds between 35-45 MPH. Our drone was engineered with high winds in mind, with a maximum windspeed rating of 30 MPH you can work with confidence with less downtime. We provide a standard 5 mile range, but the maximum control range can be configured to be up to 30 miles.

Safety

The Hermes was designed with redundancy in mind. Every Hermes is equipped with a barometer, two compasses, GPS positioning, 3 inertial measurement units, telemetry downlinks, battery and power monitors, redundant avionics power, and an array of other internal sensing abilities. Hermes can be configured to include a vertical rangefinder, airspeed sensors, flow sensors, and ADSB receivers with automatic collision avoidance. Physical safety was not overlooked either, Hermes can fly on one motor, or with one non-functioning control surface in an emergency. In the case of an emergency, Hermes will auto deploy the parachute, even if that emergency was a total loss of power, it will still deploy the chute.


Flight Characteristics


Flight time

Standard 4 hours of battery life, able to travel 175 miles on a single charge.


Crusing Speed

Optimized for flight speeds between 35 - 45 MPH.


Autonomous Control

Fully autonomous takeoff/landing. Comes standard with parachute landing.

Communications


Control Range

Standard 5 mile range, upgradable to 30 miles.


Ground Control Station

Connects with avaliable open-source ground control stations (qGroundControl, MissionPlanner) for easy flight-path visualization.


Flight Planning

Plan flights with a ground control station (qGroundControl, MissonPlanner) and easily upload before flight. Designed with usability in mind, modified flight paths can be automatically uploaded even during flight.

Maintenance


Simple Assembly/Dissambly

Engineered for easy transport, breaks down to fit into a 1.15 m (~4.7 ft) carrying container.


Built in Redundancy

All major flight systems are double or tripple redundent to prevent inflight failure.


Open-source components

All major components are open-source and allow for further customization to fit user-specific needs.
